一、产品概述
HFM系列后吸式滤泵的特色在于：密封寿命长，带压输送岗位（压滤机配用或带压喷淋循环泵），因为双级加压，料浆泵的叶轮线速度在22~28米/秒之间，即可获得0.8~1MPa的出口压力，而同类单级料浆泵的叶轮线速度在35~40米/秒左右，才能获得0.8~1MPa的出口压力。叶轮线速度下降，在有色冶炼、化工、钛白、非金属矿加工等行业有使用。适用于输送100℃以内的腐蚀性清液或料浆。
二、适用范围
1、可输送100℃温度以内的各类腐蚀性和非腐蚀性清液和料浆或用作各类压滤机加压喂料用泵
2、长期压力运行输送腐蚀性介质的岗位
3、其它泵输送介质时，容易泄漏的岗位
4、需要小流量高压力输送腐蚀性料浆的岗位

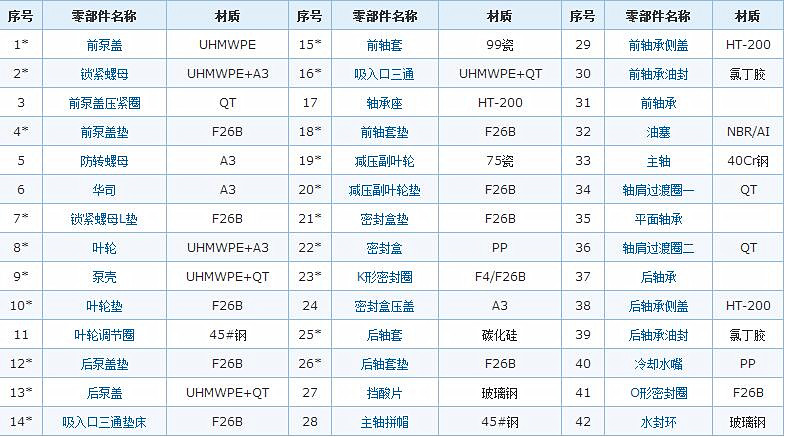

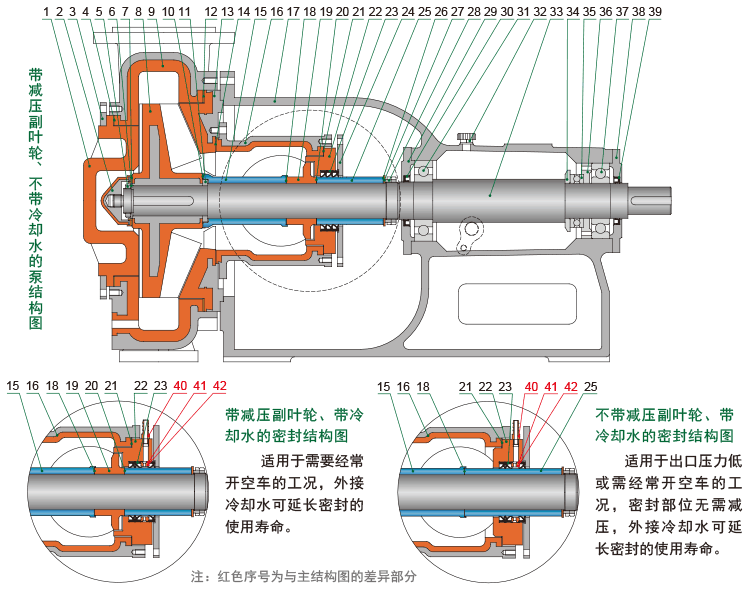

三、结构示意图
四、性能参数表
型号 | 流量 m3/h | 扬程 m | 配备电机 | 转速 r/min | 重量 kg | 入口×出口直径 mm |
50HFM-I-5-10 | 5 | 10 | 0.75kW-4 | 1450 | 160 | 50×40 |
50HFM-I-5-25 | 5 | 25 | 1.5kW-2 | 2900 | 160 | |
50HFM-I-5-30 | 5 | 30 | 2.2kW-2 | 2900 | 170 | |
50HFM-I-5-35 | 5 | 35 | 3kW-2 | 2900 | 180 | |
| 50HFM-I-10-35 | 10 | 35 | 5.5kW-2 | 2900 | 220 | |
| 50HFM-I-20-40 | 20 | 40 | 7.5kW-2 | 2900 | 245 | |
65HFM-I-10-40 | 10 | 40 | 5.5kW-2 | 2900 | 320 | 65×50 |
65HFM-I-10-50 | 10 | 50 | 5.5kW-2 | 2900 | 320 | |
65HFM-I-20-35 | 20 | 35 | 7.5kW-2 | 2900 | 320 | |
65HFM-I-20-40 | 20 | 40 | 7.5kW-2 | 2900 | 320 | |
| 65HFM-I-30-50 | 30 | 50 | 15kW-2 | 2900 | 370 | |
65HFM-I-H-5-15 | 5 | 15 | 1.1kW-4 | 1450 | 220 | 65×50 |
65HFM-I-H-5-17.5 | 5 | 17.5 | 1.1kW-4 | 1450 | 220 | |
65HFM-I-H-10-15 | 10 | 15 | 2.2kW-4 | 1450 | 280 | |
65HFM-I-H-10-17.5 | 10 | 17.5 | 2.2kW-4 | 1450 | 280 | |
| 65HFM-I-H-30-70 | 30 | 70 | 22kW-2 | 2900 | 440 | |
65HFM-I-H2-20-75 | 20 | 75 | 15kW-2 | 2900 | 400 | 65×50 |
65HFM-I-H2-25-73 | 25 | 73 | 15kW-2 | 2900 | 400 | |
| 65HFM-I-H2-35-70 | 35 | 70 | 22kW-2 | 2900 | 400 | |
80HFM-I-20-15 | 20 | 15 | 3kW-4 | 1450 | 250 | 80×65 |
80HFM-I-25-15 | 25 | 15 | 3kW-4 | 1450 | 250 | |
80HFM-I-25-17.5 | 25 | 17.5 | 4kW-4 | 1450 | 280 | |
| 80HFM-I-40-35 | 40 | 35 | 11kW-2 | 2900 | 360 | |
| 80HFM-I-H-15-15 | 15 | 15 | 2.2kW-4 | 1450 | 280 | 80×65 |
80HFM-I-H-15-17.5 | 15 | 17.5 | 3kW-4 | 1450 | 250 | |
80HFM-I-H-25-80 | 25 | 80 | 22kW-2 | 2900 | 440 | |
| 80HFM-I-H2-40-70 | 40 | 70 | 30kW-2 | 2900 | 470 | 80×65 |
| 80HFM-I-H2-60-70 | 60 | 70 | 37kW-2 | 2900 | 490 | |
100HFM-I-25-15 | 25 | 15 | 3kW-4 | 1450 | 330 | 100×80 |
100HFM-I-25-17.5 | 25 | 17.5 | 4kW-4 | 1450 | 340 | |
| 100HFM-I-100-35 | 100 | 35 | 22kW-2 | 2900 | 480 | |
100HFM-I-H-30-15 | 30 | 15 | 4kW-4 | 1450 | 340 | 100×80 |
100HFM-I-H-30-17.5 | 30 | 17.5 | 4kW-4 | 1450 | 340 | |
| 100HFM-I-H-100-50 | 100 | 50 | 37kW-2 | 2900 | 580 | |
100HFM-I-H2-60-80 | 60 | 80 | 45kW-2 | 2900 | 450 | 100×80 |
100HFM-I-H2-80-70 | 80 | 70 | 45kW-2 | 2900 | 450 | |
100HFM-I-H2-100-60 | 100 | 60 | 45kW-2 | 2900 | 450 | |
100HFM-I-H2-120-60 | 120 | 60 | 55kW-2 | 2900 | 450 | |
100HFM-I-M-60-75 | 60 | 75 | 30kW-4 | 1450 | 950 | 100×80 |
100HFM-I-M-60-85 | 60 | 85 | 37kW-4 | 1450 | 950 | |
100HFM-I-M-80-72 | 80 | 72 | 37kW-4 | 1450 | 950 | |
100HFM-I-M-80-85 | 80 | 85 | 45kW-4 | 1450 | 950 | |
| 125HFM-I-H-100-45 | 100 | 45 | 37kW-2 | 2900 | 480 | 125×100 |
125HFM-I-H-100-75 | 100 | 75 | 55kW-2 | 2900 | 400 | |
125HFM-I-H-130-70 | 130 | 70 | 55kW-2 | 2900 | 400 | |
125HFM-I-H-150-40 | 150 | 40 | 45kW-2 | 2900 | 380 | |
125HFM-I-H2-100-65 | 100 | 65 | 45kW-2 | 2900 | 600 | 125×100 |
125HFM-I-H2-130-60 | 130 | 60 | 55kW-2 | 2900 | 600 | |
125HFM-I-H2-150-55 | 150 | 55 | 55kW-2 | 2900 | 600 | |
125HFM-I-M-80-70 | 80 | 70 | 37kW-4 | 1450 | 950 | 125×100 |
125HFM-I-M-80-85 | 80 | 85 | 45kW-4 | 1450 | 950 | |
125HFM-I-M-100-70 | 100 | 70 | 45kW-4 | 1450 | 950 | |
| 150HFM-I-80-11 | 80 | 11 | 11kW-6 | 980 | 950 | 150×125 |
150HFM-I-101-18 | 101 | 18 | 15kW-6 | 980 | 950 | |
150HFM-I-120-40 | 120 | 40 | 37kW-4 | 1450 | 950 | |
| 150HFM-I-M-100-90 | 100 | 90 | 75kW-4 | 1450 | 1100 | 150×125 |
| 150HFM-I-M-200-75 | 200 | 75 | 110kW-4 | 1450 | 1100 | |
200HFM-I-168-20 | 168 | 20 | 30kW-6 | 980 | 1100 | 200×150 |
| 200HFM-I-M-120-85 | 120 | 85 | 75kW-4 | 1450 | 1800 | 200×150 |
250HFM-I-300-65 | 300 | 65 | 132kW-4 | 1450 | 2200 | 250×200 |
